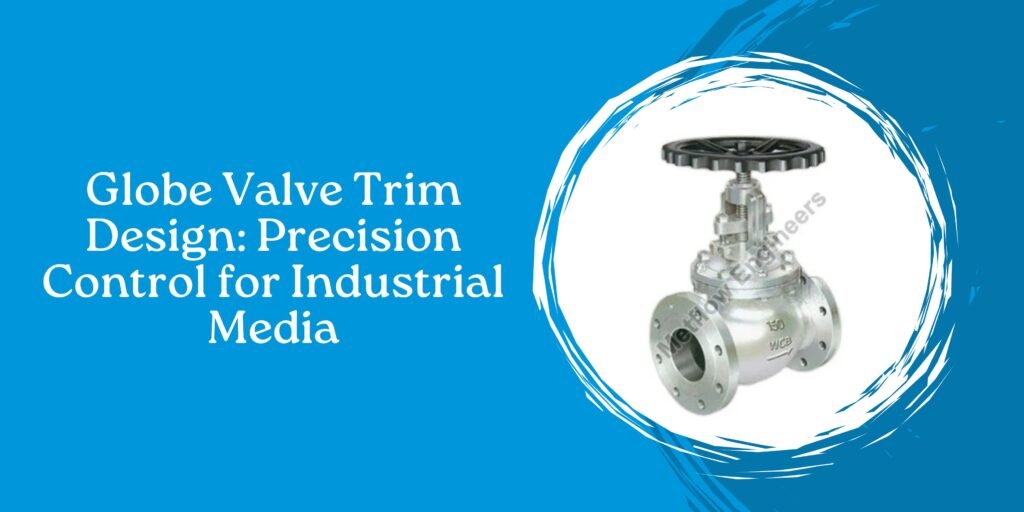

Globe Valve Trim Design: Precision Control for Industrial Media
When a process requires fine-tuned regulation of flow rate or pressure, the Globe Valve is the industry standard. Unlike other valve types, the globe valve’s unique body design forces fluid through a “S-turn” flow path. While this increases pressure drop, it provides the control necessary to manage fluid movement accurately.
The true “intelligence” of a globe valve is found in its trim—the combination of the plug (or disc) and the seat.
1. The Anatomy of a Globe Valve Trim
The trim determines how the valve responds when the handwheel is turned. Because the flow is forced through a restricted opening, the trim geometry dictates the relationship between the valve opening percentage and the actual flow rate.
2. Common Trim Geometries
Choosing the right plug shape is essential for the specific needs of your system:
Parabolic Plug (Throttling Plug): This is the most common design for general throttling. The parabolic shape provides a “linear” flow characteristic, meaning as you open the valve, the flow rate increases in direct proportion to the travel of the stem. This makes manual flow adjustment intuitive and smooth.
Needle Plug: Designed for extremely fine regulation. The long, tapered tip of the needle plug allows for small incremental changes in flow. This is the ideal choice for instrumentation lines or small-bore chemical feeding systems where precision is paramount.
Flat/Composition Disc: These are designed for tight, “bubble-tight” shut-off rather than continuous throttling. The flat design provides a large sealing surface, making it excellent for applications where the valve spends most of its time in the closed position.
3. Material Hardness and Velocity
Because globe valves are often used to throttle high-pressure fluids, the trim is subject to high velocity and potential cavitation.
Hard Facing: Many industrial globe valve trims are “hard-faced” with materials like Stellite. This prevents the “wire-drawing” effect, where high-velocity fluid slowly cuts grooves into the plug and seat surfaces.
Flow-to-Close vs. Flow-to-Open: The orientation of the trim relative to the flow direction also matters. An engineer must decide whether the fluid hits the top of the plug (aiding closure but causing vibration) or the bottom of the plug (resisting closure but offering better throttling control).
4. Improving Throttling Stability
If you notice vibration or “chatter” in your globe valves during throttling, it is often a sign of incorrect trim selection or mismatched flow velocity. A stable trim should:
Center itself perfectly within the seat port.
Maintain a constant pressure drop across the plug.
Be manufactured from materials rated for the temperature and erosive nature of the process media.
Conclusion: Matching Trim to Application
The next time you specify a Globe Valve, look beyond the body material. The trim geometry is the primary factor that determines if your valve will provide years of smooth, accurate control or if it will be a constant source of maintenance frustration.
Are you having trouble achieving the desired flow control in your process lines? Selecting the right trim is an engineering decision. Our team is available to help you match the right plug design to your specific flow requirements to ensure your systems perform exactly as intended.
